Why do you need a Switchboard Upgrade in Gold Coast?

The switchboard is the core of your entire electrical system. You may have taken good care of your older switchboard, but once it becomes outdated and worn out, it may have frequent blowouts where circuits and fuses blow unexpectedly.

Old and worn-out switchboards can be highly dangerous and are a safety concern.
They may be somewhat of an inconvenience and need a replacement with modern ones.

The good news is, most new switchboards are not only easier to operate than older models were, but also allow users to utilize multiple smart home devices.

MCH Electrical offers Switchboard Upgrade Services Gold Coast to domestic and commercial customers in the Gold Coast region, ensuring compliance with the latest safety regulations

To ensure that you are well-protected in your home, get in touch with one of our qualified electricians today to complete switchboard upgrades.

Upgrading your switchboard as part of a new or changed power supply? Read about our service installation work.

What is a Switchboard?

The switchboard is the device that distributes electricity from the power source to the various appliances and sockets throughout the premises. This panel contains switches controlling the electrical flow and get connected to the wiring and circuits that power the property.

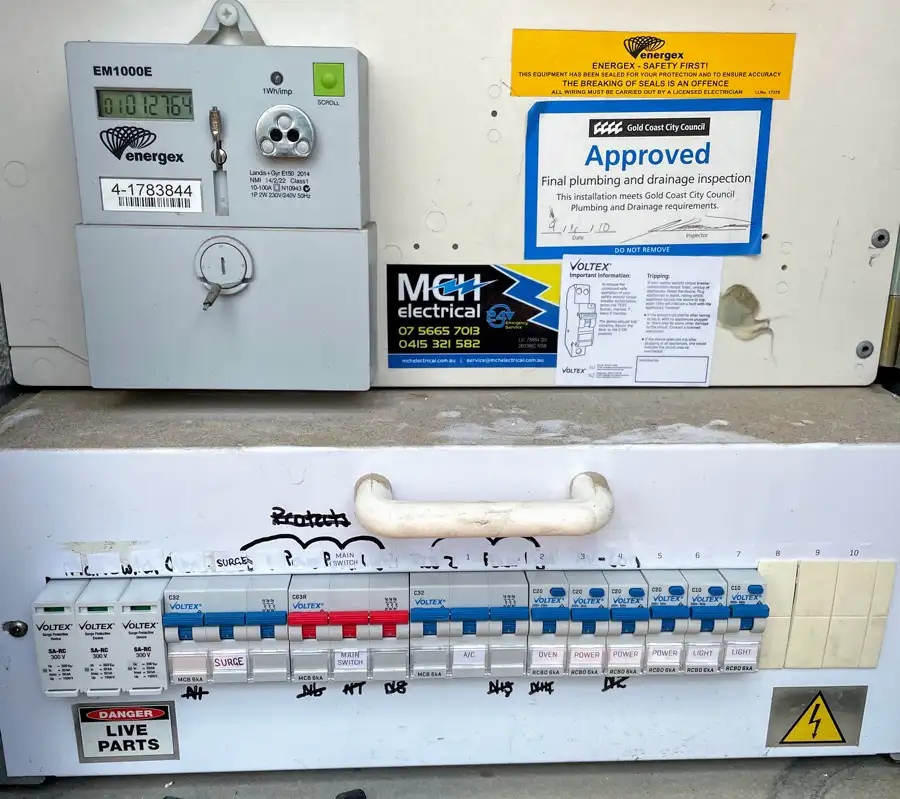

When Does Your Switchboard Need an Upgrade?

There are some clear signs that residents and property owners can look out for, to see if they may need a switchboard upgrade. If you notice the following signs, it may be time to upgrade your Switchboard.

Signs that you need a Switchboard Upgrade Gold Coast:

Need a professional switchboard upgrade?

As technology advances, many switchboards are unable to keep up with the safety standards. If you are still using ceramic or rewireable fuses, then an upgrade is essential.

Our highly-trained technicians will arrive on-site to complete a comprehensive inspection and recommend the most suitable switchboard upgrade solutions for you. Our priority is to ensure safety at your premises, and our experts help you provide the highest-quality service.

Most switchboards are replaced because of age and capacity rather than an outright failure. These are the signs worth acting on:

Ceramic or rewireable fuses. Fuse wire that has to be replaced by hand dates the board to well before modern standards. Circuit breakers trip and reset instead, and they respond faster to a fault.
No safety switches (RCDs). A circuit breaker protects the wiring. A safety switch protects people, by cutting power when current leaks to earth. A board with breakers alone is only half protected.
Breakers that trip repeatedly. Occasional tripping is the system doing its job. Regular tripping usually points to an overloaded circuit, a faulty appliance or degraded wiring.
Scorch marks, a burning smell, buzzing or heat at the board. Treat any of these as urgent and stop using the affected circuits.
No spare ways. A full board means no room for new circuits, so any addition such as air conditioning or a new kitchen circuit forces a rebuild anyway.
An asbestos backing panel. Boards installed before the late 1980s often used asbestos sheeting behind the equipment. It is safe while undisturbed, but it changes how the upgrade has to be handled and removed.

Safety switch rules for Queensland homes

Queensland has requirements that go beyond most other states, and they depend on when the home was built and what you are doing with it.

Homes built or extended between 1992 and 2000 must have a safety switch on power point circuits.
Homes built or extended after 2000 must have safety switches on both power point and lighting circuits.
When a home is sold, the seller must declare on the standard sales contract and the Form 24 property transfer whether safety switches are fitted to the power point circuits. If they are not, the buyer must have them installed within 90 days of the transfer.
For a rental property, the lessor must ensure safety switches are installed on power point circuits within 90 days of the tenancy agreement starting.

The Electrical Safety Office recommends testing safety switches every three months using the test button on the board, which is easy to tie to the quarterly electricity bill. Wiring work itself is carried out to AS/NZS 3000, the Australian and New Zealand Wiring Rules.

What a switchboard upgrade involves

A switchboard upgrade is a like-for-like replacement of the enclosure and the protective devices inside it, not a rewire of the house. A typical job runs like this:

Inspection. The existing board, main switch, earthing and incoming supply are checked, and the circuits are identified and mapped.
Isolation. Supply is isolated before the old equipment is removed. Power is off at the property while the work is done.
Installation. A new enclosure is fitted with a main switch, DIN rail, and RCBOs or a combination of safety switches and circuit breakers so every circuit is protected.
Earthing. The main earth and any bonding are checked and brought up to current requirements, which is often the part an older installation is missing.
Labelling. Every circuit is labelled, so the next person working on the board is not guessing.
Testing and certification. The installation is tested and a certificate of testing and compliance is issued for the work.

Boards with an asbestos backing panel, a main switch that needs upsizing, or a supply authority connection that has to be altered take longer, because those steps involve additional handling or coordination with the network provider.

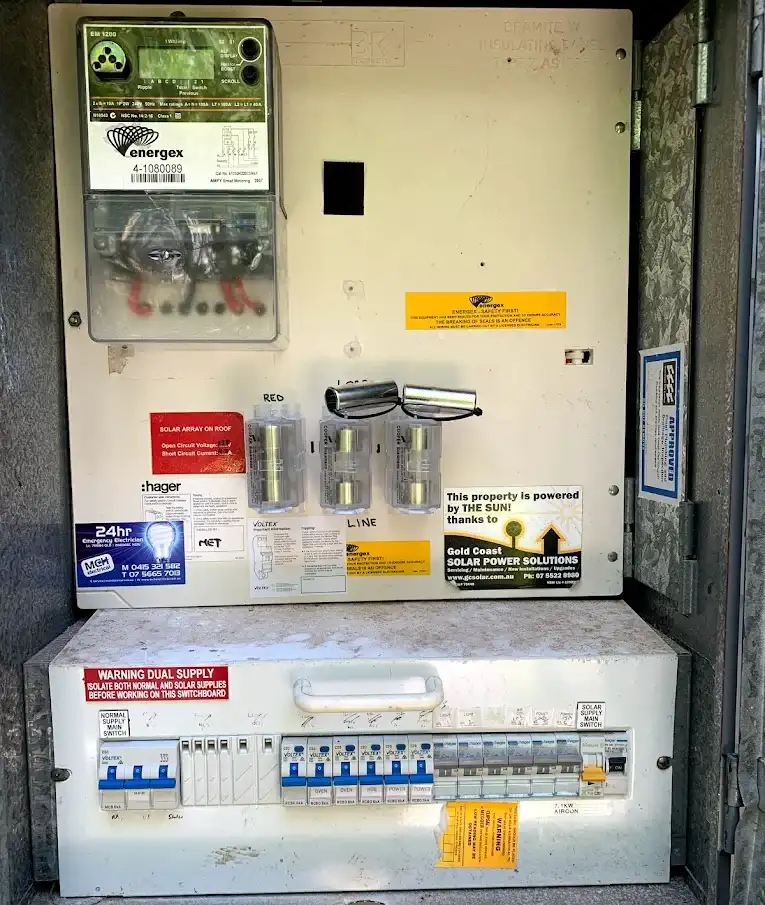

Upgrading for solar, batteries and EV charging

Older boards were designed for a house with far fewer loads than a current one. Adding any of the following commonly triggers a switchboard upgrade:

Solar. A grid-connected system needs its own protection and isolation at the board, plus physical space for it.
Battery storage. Batteries add both a supply and a load, and the board has to accommodate the switching and protection for each.
EV charging. A dedicated circuit for a wall charger draws sustained current for hours at a time, which is a different demand profile to a power point, and it needs its own protection.
Ducted or multi-head air conditioning. Usually a dedicated circuit, and often the point at which a full board runs out of ways.
Kitchen and laundry renovations. New appliance circuits are added, and existing circuits are frequently reallocated.

If more than one of these is planned, it is worth sizing the upgrade for all of them at once rather than returning to the board each time.

Why choose MCH Electrical for Switchboard Upgrade?

We have fully qualified & licensed electricians.

We put the safety of our customers first.

We offer top-quality workmanship and customer service.

We offer emergency electrical services for prompt response situations.

We have extensive experience completing switchboard upgrades all across the Gold Coast.

WHAT OUR HAPPY CLIENTS SAY

Looking for Reliable & professional Switchboard Upgrade Gold Coast?

With the current electrical standards, some older switchboards may not be able to support specific devices or may lack additional safety features.

You can protect yourself and those around you by bringing in our team of trained inspectors who can warn you about any potential electrical hazards to identify and suggest ways to correct those issues.

Keeping yourself safe is essential, which is why we believe that everything matters when it comes to the electric wiring system of your home or workplace.

Our technicians will come to your house or business, conduct an inspection, and then advise you on how to upgrade your Switchboard.
